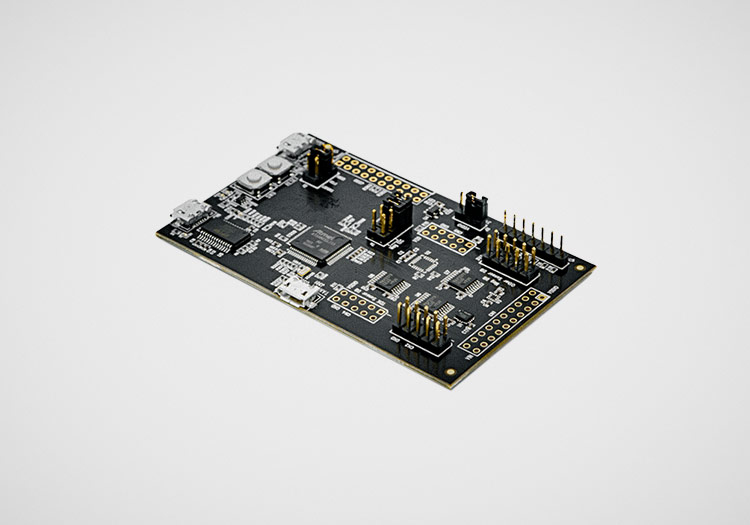

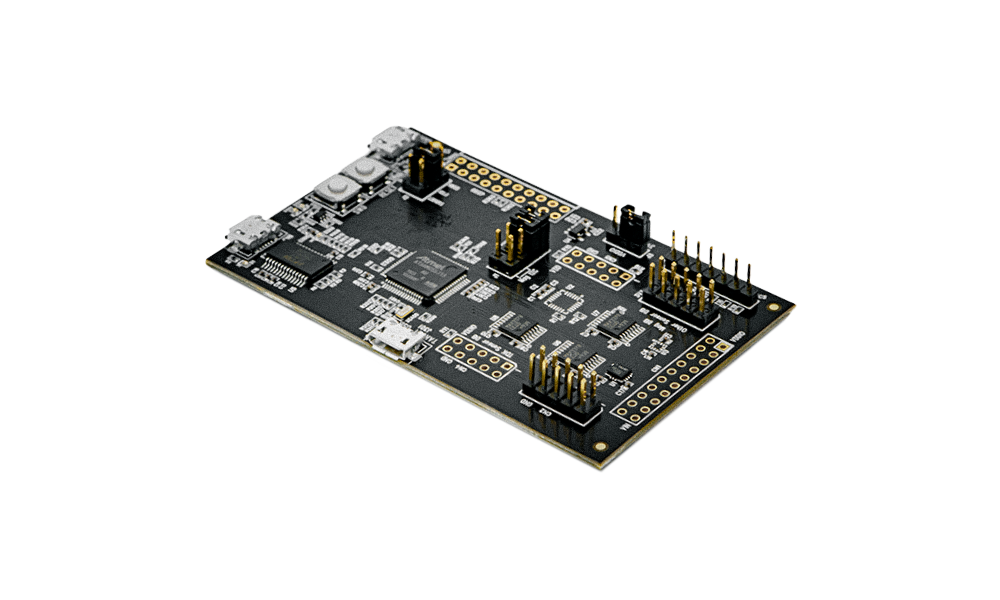

The platform, designed around Microchip G55 MCU can be used by developers for rapid evaluation and development of IIM‑42653 based solutions. The DK‑42653 includes an on-board Embedded Debugger so external tools are not required to program or debug the G55 MCU.
The development kit comes with necessary software including InvenSense Motion Link, a GUI based development tool and embedded Motion Drivers for IIM‑42653.
Embedded Motion Drivers (eMD) consists of a set of APIs to configure various aspects of the platform including IIM‑42653 sensor parameters such as full-scale range (FSR), output data rate (ODR), low-power or low-noise mode, and sensor interface to host (I3C℠, I²C, SPI).
MotionLink is a GUI based development tool included with the platform. It can be used to capture and visualize the sensor data from the motion sensor.
